Human Machine Interface ( HMI )

All models of GP-2000 series also meet international safety standards. The outstanding features of these models meet the need of factory information management around the world.

With the speed of businsess increasing day by day, companies around the world are striving to communicate faster and more effectively. As a result, leading-edge information technology (IT) is fast becoming an essential tool for the rapid, well-informed decision making required for companies to respond to ever-changing customer needs.

The new GP2000 Series Programmable Operator Interface allows you to share a wide range of production information throughout your company in real-time. This shared base of technical data ensures a rapid response to customer requests, supports on-time delivery management, and maximizes overall business efficiency. Furthermore, the GP2000 serves as a factory automation gateway that supports your global business needs via the Internet.

The wide 12.1-inch screen provides a large amount of information
GP-2600T


Model : GP2600-TC11 / GP2600-TC41-24V

Specification
  • Application : 4MB FLASH EPROM
  • 12.1inch 800×600 TFT color LCD
  • 256, No blink/64 colors, 3-speed blink *

GP-2600T

Low-cost model with CF card I/F
GP-2601T


Model : GP2601-TC11

Specification
  • Application : 4MB FLASH EPROM
  • 12.1inch 800×600 TFT color LCD
  • Colors 256 (No blink) or 64 colors (3-speed blink) *

GP-2601T



A multiple of innovative features provide a wide range of solutions
GP-2500T


Model : GP2500-TC11 / GP2500-TC41-24V

Specification
  • Application : 4MB FLASH EPROM
  • 10.4inch 640×480 TFT color LCD
  • 256, No blink/64 colors, 3-speed blink *

GP-2500T

A multiple of innovative features provide a wide range of solutions
GP-2500S


Model : GP2500-SC41-24V

Specification
  • Application : 4MB FLASH EPROM
  • 10.4inch 640×480 STN color LCD
  • 64 colors, 3-speed blink

GP-2500S




A multiple of innovative features provide a wide range of solutions
GP-2500L


Model : GP2500-LG41-24V

Specification
  • Application : 4MB FLASH EPROM
  • 10.4inch 640×480 Monochrome LCD
  • Black and white

GP-2500L

Low-cost model with Monochrome LCD and CF card I/F
GP-2501L NEW !


Model : GP2501-LG41-24V

Specification
  • Application : 2MB FLASH EPROM
  • 10.4inch 640×480 Monochrome LCD
  • Black and white

GP-2501L



High-performance compact model
GP-2400T


Model : GP2400-TC41-24V

Specification
  • Application : 4MB FLASH EPROM
  • 7.4inch 640×480 TFT color LCD
  • 256, No blink/64 colors, 3-speed blink *

GP-2400T

Low-cost model with CF card I/F
GP-2401T


Model : GP2401-TC41-24V

Specification
  • Application : 2MB FLASH EPROM
  • 7.4inch 640×480 TFT color LCD
  • Colors 256 (No blink) or 64 colors (3-speed blink) *1

GP-2401T


Easy-to-read 5.7inch color TFT model, offering the most important GP2000 specifications in a compact body.
GP-2300T


Model : GP2300-TC41-24V

Specification
  • Application : 2MB FLASH EPROM
  • 5.7inch 320×240 TFT color LCD
  • 256, No blink/64 colors, 3-speed blink *1

GP-2300T

Easy-to-read 5.7inch color STN model with high communication capability.
GP-2300S
NEW !

Model : GP2300-SC41-24V

Specification
  • Application : 2MB FLASH EPROM
  • 5.7inch 320×240 STN color LCD
  • 64 colors

GP-2300S




5.7inch Monochrome LCD model with high communication capability.
GP-2300L


Model : GP2300-LG41-24V

Specification
  • Application : 2MB FLASH EPROM
  • 5.7inch 320×240 Monochrome LCD
  • Black and white

GP-2300L

Low-cost model with CF card I/F
GP-2601T


Model : GP2301-TC41-24V

Specification
  • Application : 1MB FLASH EPROM
  • 5.7inch 320×240 TFT color LCD
  • Colors 256 (No blink) or 64 colors (3-speed blink) *1

GP-2601T



5.7inch color STN model provides easy-to-read and safety operation.
GP-2301S


Model : GP2301-SC41-24V

Specification
  • Application : 1MB FLASH EPROM
  • 5.7inch 320×240 STN color LCD
  • 64 colors

GP-2301S

5.7inch Monochrome LCD model with the GP2000 Series performance.
GP-2301L


Model : GP2301-LG41-24 V

Specification
  • Application : 1MB FLASH EPROM
  • 5.7inch 320×240 Monochrome LCD
  • Black and white

GP-2301L

* Changing the "Colors" setting to "256 colors" will disable the blink feature on all of your project's screens. If you wish to use the blink feature, do not change this setting to "256 colors".
To use the GP2300 models, GP-PRO/PBIII for Windows V5.05 GP2300 Add-on kit is required. Click here for information about Add-on Software download.

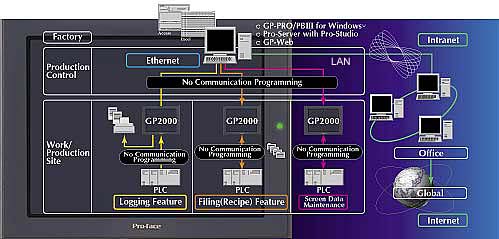

Send Your Production Data Anywhere to a Host PC via the GP, and then to the World via the Internet.

Collect Data to Standard PC Applications The Pro-Server with Pro-Studio software allows a host PC to collect PLC data via a GP to common applications such as Microsoft Excel or Access database, where you can easily process the data for production and quality control.

Ethernet Connectivity Enables Quick and Accurate Logging of Data from the Factory Floor The Pro-Server's "Action" features support data communication over an Ethernet network without the need for time-consuming programming or complex settings. PLC production data can be regularly collected to a host PC for analysis, and used in a wide range of applications.

Download Screen and Setup Data from your PC to the GP2000 via an Ethernet Network Use a high-speed Ethernet network to quickly download setup and screen data from your PC to a GP. The data transfer rate is four to six times faster than with a serial cable, which speeds up GP data maintenance and improves your work efficiency.

* Multiple GP2000 Series units connected to an Ethernet network can be easily set up via a single PC in sequence. Bring the advantages of the Internet to your GP2000 applications
GP-Web enables remote monitoring of factory floor data anytime and anywhere, without programming!
  • Access a wide variety of vital production data from a remote location.
  • Create data monitoring screens — without special programming.
  • Monitor production conditions anytime, anywhere.
  • Slashes maintenance costs for domestic and overseas manufacturing sites located in remote areas.
  • Use the Internet or your Intranet to monitor world-wide production in real time.
  • An internet browser is the only tool required for remote monitoring.


User-Friendly Features
Multimedia and Data Handling Enhance Your Communication Ability

Multimedia

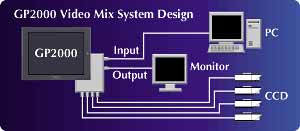

Install a Video/VGA Monitoring System and Easily View Distant Areas Using up to 4 Sub-Screens

Connect up to four video cameras, and a PC to a GP2000 and monitor separate areas simultaneously on up to 4 screens. While monitoring remote areas, you can also operate your equipment from the same GP.

* Available only with GP-2600T and GP-2500T units.
** 4 simultaneous video window display and other functions require GP-PRO/PB III

V5.05 or greater.
Data Storage

Use the Built-in CF Card Interface to Store Screen or Logging Data

The CF Card used with the GP2000 requires no battery to retain stored data. Easily back up various types of data, including logging, filing and screen data.

Use a CF Card to Quickly Set Up Your GP in Offline Mode and to Update Screen Data
Save GP2000 system data on a CF Card and quickly set up a GP2000 in Offline mode. In addition, the CF Card speeds up screen data updates by eliminating the need for repeatedly downloading new data from your PC to the GP.

The GP2000 is compatible with two-dimensional code readers. These new code formats can handle from 84 to 1000 times more data than a conventional bar-code.

High-Capacity Two-Dimensional Code Reader Compatibility
Alert an operator of an alarm or status change via an audio message.
